Mini TS100 OLED Display Digital Opensource Soldering Iron

Item Code: HP105-0001
Login or Register to see prices.
  • Description
The TS100 Digital OLED Programmable Soldering Iron is an internal heating intelligent CNC soldering iron. It is easy to assemble and disassemble for storage. It has comfortable handle and the highly effective heating function makes it an indispensable tools for any hobbyist. It is made from high quality metal & plastic materials and assembled with great workmanship, for high durability and reliability.

Our favorite feature of the TS100 is it's ability to be so mobile. It can easily be powered by a 4s lipo battery while on the go, no A/C outlet required. This means you can make quick fixes while out at the field. The iron heats up to operating temperature in under 15 seconds! This is a must have for any RC enthusiast.

Features
Built-in acceleration sensors with STM32 chip can intelligently record your usage habits
Bright OLED screen is clear easy for you to read information
Digital temperature readout
Temperature control button is set on the handle allowing for easy temperature adjustments
Anti-static structure with ground wire ensures your safety during use
Supports custom programmable development (Micro USB Connection)
Multiple soldering head types are available (Up to 7)
Can be powered via a 3-4s LiPo battery for mobile use

Specifications
Model TS100
Material Metal & Plastic
Power 65W
Special Function Programmable, Temperature Adjustment
Voltage(V) 12-24V
Temperature Control Support Yes
Adjustable Temperature Range      100 Centigrade - 400 Centigrade
Heating Type Internal Heating
Working Temperature 300 Centigrade
Color Black
Dimensions (6.61 x 0.67 x 0.51)" / (16.8 x 1.7 x 1.3)cm (L x W x H)
Weight 0.74oz / 21g

Package Includes
1 x TS100 Digital LCD Soldering Iron
1 x TS-B2 or TS-BC2 Solder Tip (Please choose when adding to cart)
1 x Allen Wrench
2x Extra Locking Screws
1 x Bilingual Manual in English and Chinese

** Please note: The TS100 does not include a power cable or power supply.
Suggested 12-24v input. CLICK HERE for a compatible cable **

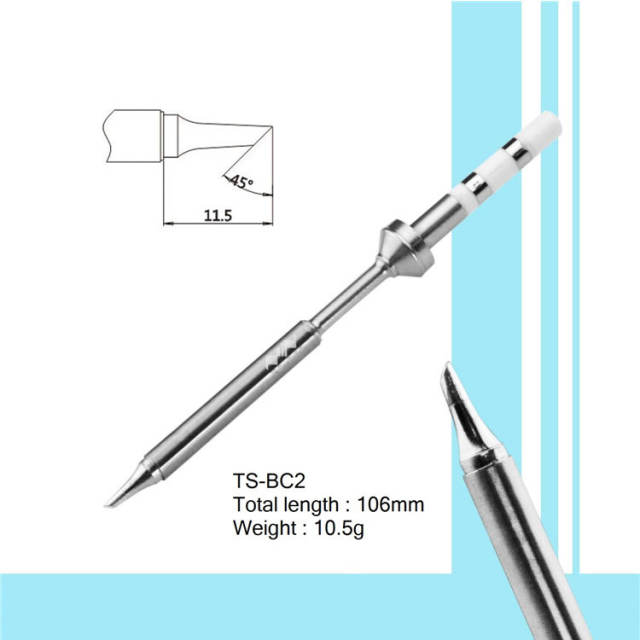

Please choose the TIP VERSION you need when adding to cart. The 2 pictures below show B2 and BC2
